55-inch Smart Garage Management and Advertising Horizontal Display Outdoor Advertising All-in-One Machine
Innovative Integration: The 55-inch Outdoor Advertising Kiosk perfectly combines smart parking garage management with commercial promotion. It not only displays advertising information but also brings an intelligent experience to parking garage management, making every parking session more convenient and efficient!
The 55-inch Outdoor Advertising Kiosk perfectly combines smart parking garage management with commercial promotion, creating a brand-new experience!

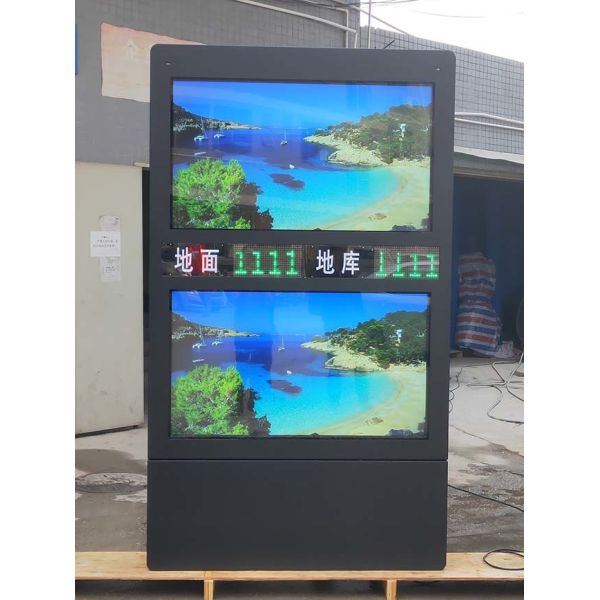

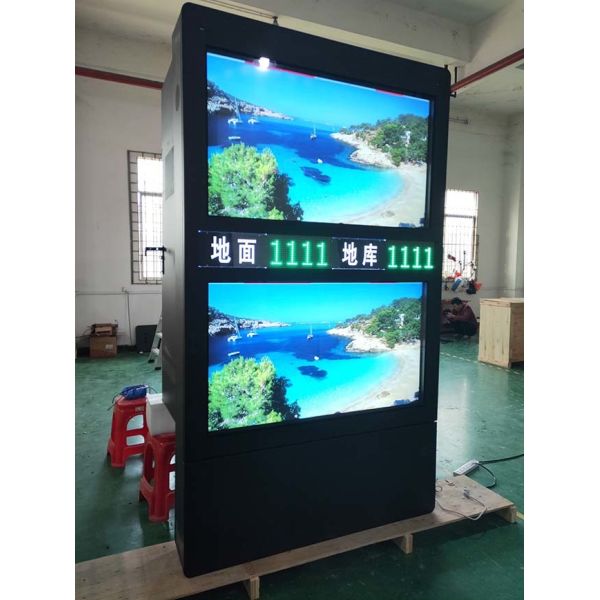

Dual Screens, Dual Effects: Advertising and Information at a Glance: The front features a dual-screen design. The upper screen displays various advertising information, while the lower screen displays real-time information such as vehicle license plate numbers, meeting diverse information display needs.
LED Bead Screen, Real-Time Guidance: The central LED bead screen displays the number of parking spaces in the garage and on the ground, providing drivers with real-time parking guidance to easily find a suitable parking spot.
Intelligent Management, High Efficiency and Convenience: Integrated with a parking garage management system, it realizes intelligent functions such as vehicle entry and exit management and parking space guidance, providing car owners with an efficient and convenient parking experience.
Commercial Promotion, Dual Value: The dual functions of advertising and parking garage management not only provide a promotional platform for businesses but also bring convenient parking services to car owners.
High-brightness display, attracting attention: The high-brightness display screen clearly shows content in various lighting conditions, making advertising information more attractive.
| 55-inch Android Outdoor All-in-One Unit (Air Conditioner Model) Specification Sheet |
| Specications |
|
| The containment structure | The material and feature of shell | IP66 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
|
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel |
|
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) |
| Aspect Ratio | 9:16 |
| LCD Type | TFT-LCD |
| Max Resolution | 1920X 1080 |
| Display color | 16.7M |
| Brightness | 2000cd/㎡~2500 cd/㎡ |
| Contrast Ratio | 4000:1 |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° |
| Response Time | 6ms |
| Field Frequency | 60Hz |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH |
| Touch Overlay for Interactivity | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points |
| Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. |
| Drawer-type Android Media Player box Configuration | Processor Chip | RK3399, six core |
| RAM | 4GB |
| Flash Memory Card | 32GB |
| Wifi and 4G | Yes |
| Version | Android 9.0 |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA |
| Photo format | BMP, JPEG, PNG, GIF etx |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 |
| USB | 2 |
| Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution |
| Speakers | Dual side speakers for Audio |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker |
| Thunder Preventer | The tree-level lightning protection |
| Leakage protective device | Defend Electricity Leakage |
| Timer | Set up on/off time on day/week/month |
| Outdoor OMC system(optional) | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). |
|
| Problem and staus monitoring software included. |
| Touble shooting by software included. |
| Use softwae Remote Check key working performance by Group |
| Unnormal work alarm generation |
| Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
|
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically |
|
| Environment | Working temperature | 0℃ ~ 50℃ |
| Working humidity | 5% ~ 95% |
| Working Voltage | AC 100 ~240v , 50Hz |
| Max Power Consumption | 280W |
| Product size / Net weight | To be determined |
| Outer Package size and Gross weight |
Stylish appearance, reflecting taste: The simple and stylish design complements the modern urban environment, adding a unique touch to the garage.
This 55-inch outdoor advertising all-in-one machine perfectly combines smart garage management with commercial promotion, providing users with more convenience and value, marking a new milestone for the garage and commercial sectors. It makes every parking experience a pleasant one, allowing advertising and smart management to be displayed simultaneously.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
